Product Details:
Place of Origin: China
Brand Name: Lumigenex
Certification: CE,ISO13485
Model Number: MA
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 Test/ Box, 5 Tests/ Box, 25 Tests/ Box
Delivery Time: Depends On Order Quantity,Negotiable
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500,000-600,000 Pcs/Day

Infectious Disease Detection Tool Malaria PF/PV Antigen Rapid Test Kit Colloidal Gold CE Registered

Description
Product Name: PocRoc® Malaria P.f/P.v Antigen Rapid Test Kit (Colloidal Gold) Method: Colloidal Gold
Function: Qualitative Detection Of P.falciparum Specific Histidine Rich Protein- II (Pf. HRP-II) And P. Vivax Specific PLDH. Antigens Format: Test Cassette
Specimen: Whole Blood Storing Temperature: 4℃-30℃
Shelf Life: 2years(24months) Sensitivity: 93.33%
Specificity: 99.16% Supply Ability: 500,000 Tests Per Day
High Light:

ANSM IgM IgG rapid test kits

,

COVID-19 IgM IgG rapid test kits

,

COVID-19 rapid test kit home

PocRoc® Malaria P.f/P.v Antigen Rapid Test Kit (Colloidal Gold)



Intended Use
The Malaria (P.f/P.v) Antigen Rapid Testing Kit (Colloidal Gold) is designed for rapid and qualitative detection of P.falciparum specific histidine rich protein- II (Pf. HRP-II) and P.vivax specific pLDH. antigens in whole blood samples to aid in the diagnosis of Plasmodium infection. The test provides preliminary qualitative results, and these must be analyzed along with other clinical information before making a final diagnosis.

Principle of the Test
The PocRoc® Malaria P.f/P.v Antigen Rapid Test Kit with colloidal gold labeling is a diagnostic tool for detecting the presence of malaria antigens in human blood samples. The test cassette consists of four parts: sample pad, conjugate pad, reaction membrane, and absorbing pad. The reaction membrane contains T1 and T2 test lines pre-coated with mouse anti-pf and anti-pv monoclonal antibodies, respectively, while the conjugate pad contains colloidal gold particles conjugated with anti-pf and anti-pv mAbs for binding to Pf. HRP-II and P. vivax specific pLDH antigens. When a patient's blood specimen is added to the sample well, the targeted malaria antigens and labeled mAb complexes travel along the test strip and bind to their respective mouse anti-pf or anti-pv monoclonal antibodies to form colored lines in the test lines.



Malaria PF/PV Antigen Rapid Test Kit Colloidal Gold CE Registered 0Malaria PF/PV Antigen Rapid Test Kit Colloidal Gold CE Registered 1









Specification



Product Name
PocRoc® Malaria P.f/P.v Antigen Rapid Test Kit (Colloidal Gold)
Function
Qualitative detection of P.falciparum specific histidine rich protein- II (Pf. HRP-II) and P. vivax specific pLDH. antigens
Method
Colloidal Gold
Usage
Point-of-care Test Reagent for Hospital usage and home usage
Specimen
Whole blood
Composition of the Test Kit

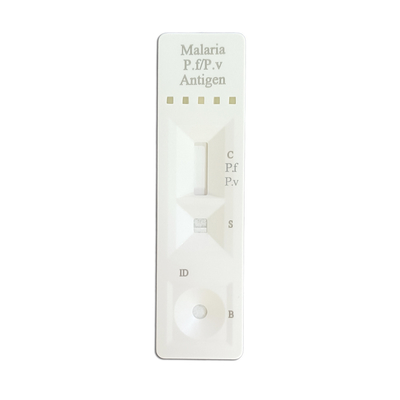

1.Test device is composed of a plastic cassette and a test strip. The test strip is composed of a sample pad, a conjugate pad, nitrocellulose membrane, an absorbing pad and polyvinyl chloride(PVC) backing card.

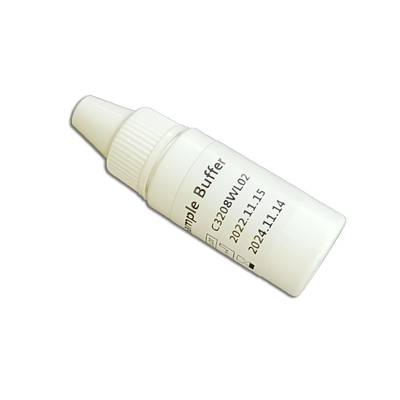

2.The sample buffer is composed of PBS buffer, Triton-100 and proclin 300.
* Do not exchange components with different batch numbers.
Storage
All components are ready to use as supplied.
Unopened test kits are stable at 4-30°C for 24 months.
Once the pouch is opened, It must be used in 1h under 20-30°C and humidity below 60%. After the expiration date, the test kit should be discarded as biohazard waste.

The Contents of the Test Kit
Ref No.
Package
Test Cassette
Sample Buffer
Capillary Pipette
IFU
C3108-01-001
1 Test / Box
1
1
1
1
C3108-01-005
5 Tests / Box
5
5
5
1
C3108-01-010
10 Tests / Box
10
10
10
1
C3108-01-025
25 Tests / Box 25 1 bottle 25 1
C3108-01-050
50 Tests / Box 50 1 bottle 50 1

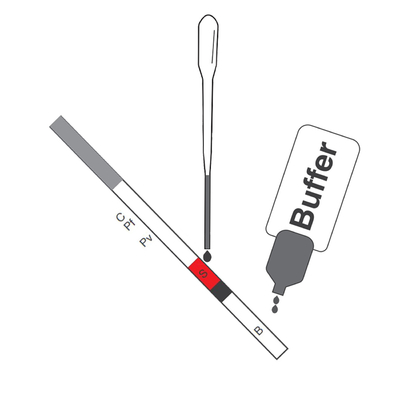

Test Procedure



1. Use sample loop or pipette to add 5μl of fingertip whole blood or Venipuncture whole blood into sample well(S).

2. Add 2 drops (100-120μl) of sample buffer into well (B).

3. Read the test result within 20-30 minutes.

Malaria PF/PV Antigen Rapid Test Kit Colloidal Gold CE Registered 2



Certificates



Malaria PF/PV Antigen Rapid Test Kit Colloidal Gold CE Registered 3 Malaria PF/PV Antigen Rapid Test Kit Colloidal Gold CE Registered 4
