Product Details:
|
| Product Name: | Dry Chemistry Analyzer | Specification: | 1 Set/box |
|---|---|---|---|
| Certificate: | CE/ISO13485/cFDA | Weight/Size: | 116g±16g/139(L)×76(W)×26.6(H)mm |
| Shelf Life: | 5 Years | Place Of Origin: | Jiangsu,China |
| Precision: | CV≤5.0% | Repeatability: | CV≤15% |
| Temperature: | 5℃~40℃ | Humidity: | 20%～80% |
| After Sales Service: | One Year Warranty | Output: | USB, Bluetooth |
| Printer: | Portable Bluetooth Printer (Optional) | OEM: | Available |
| Highlight: | 116g dry biochemistry analyzer,chronic disease dry biochemistry analyzer,chronic disease portable biochemistry analyzer |
||
Intelligent chronic disease management expert Dry Chemistry Analyzer LP-100
1. Product Description
The dry chemistry analyzer is a smart and portable quantitative analysis instrument. The Dry Chemistry Analyzer uses the reflection spectrophotometry principle to quantitative detect the chemical components in the clinical human blood samples of whole blood, serum and plasma by testing the matched test strips manufactured by Lumigenex (Suzhou) Co., Ltd. The working principle of the dry chemistry analyzer is as follows: illuminate the colour area of the test strip with a specific wavelength light source, measure the absorbance of the test strip, capture the reflected signal strength with the photosensitive diode, and detect the content of the analyte according to the obtained AD value.
2. Specification
| Product Name | Dry Chemistry Analyzer |
| Specification | 1 set/box |
| Weight | 116g±16g |
| Size | 139(L)×76(W)×26.6(H)mm |
| Sample | Blood, Urine |
| Storage Temperature | 5℃~40℃ |
| Storage Humidity | 20%～80% |
| Certificate | ISO13485/CE/CFDA |
| Precision | CV≤5.0% |
| Repeatability | CV≤15% |
| Output | USB, Bluetooth |
| Printer | Portable Bluetooth printer (optional), additional payment if needed |
| Place of Origin | Suzhou, Jiangsu, China |
| MOQ | Negotiable, Accept small quantity |
| Lead Time | Depends on the order, 1~15 working days |
| Tips | Best to inquire for shipping details. We will contact you within 24 hours. Door to door service can be provided in some areas. |
3. Application Scope
Use matched test strip that manufactured by Lumigenex (Suzhou) Co., Ltd. to quantitatively analyze clinical chemical components in human whole blood, serum and plasma with the reflection spectrophotometry.
4. Features and Advantage
| Comparison table between the dry biochemical analyzer and wet biochemical analyzer | |||
| No. | Name | Dry Biochemical Analyzer | Wet Biochemical Analyzer |
| 1 | Detection method | Reflection luminosity | Transmission photometry |
| 2 | Reaction carrier | Solid medium | Colourimetric cup or flow pool |
| 3 | Pipeline system | Non-liquid pipeline | yeah |
| 4 | Theoretical basis | Kubelka | Lambert-Beer |
| 5 | Maintain | Simple | Tedious |
| 6 | Reagent | Solid-phase, most of them do not need calibration, and the stability period is long. | Liquid, need calibration, a short stabilization period |

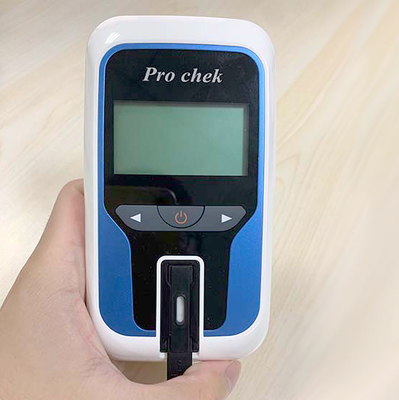

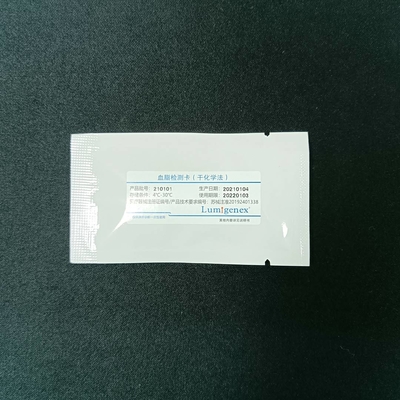

5. More Pictures
