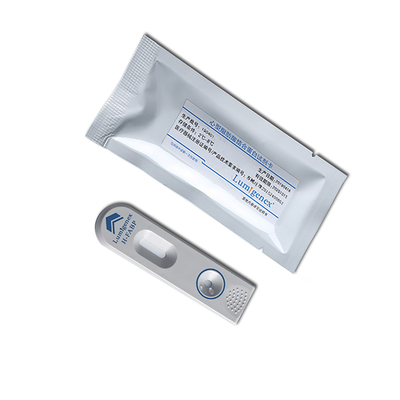

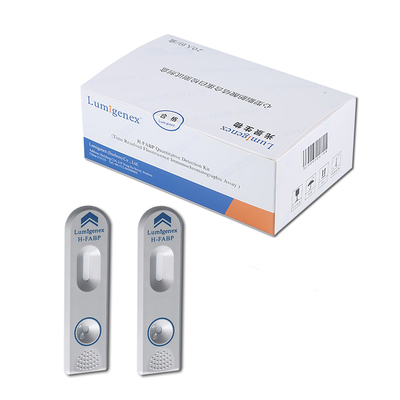

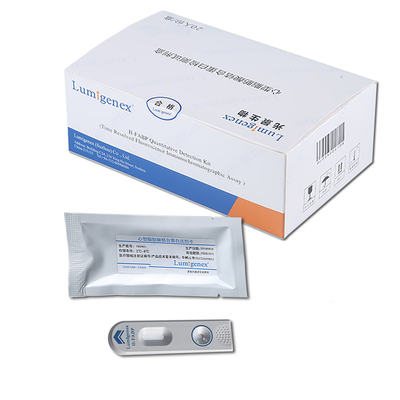

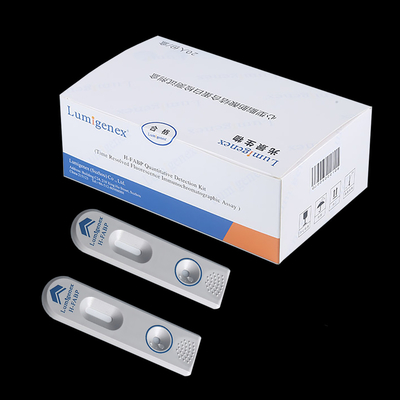

TRFIA Platform Heart Type Fatty Acid Binding Protein H-FABP Test Kit Cardiac Marker

TRFIA Platform Heart Type Fatty Acid Binding Protein H-FABP Test Kit Cardiac Marker
TRFIA Platform Heart Type Fatty Acid Binding Protein H-FABP Test Kit Cardiac Marker TRFIA Platform Heart Type Fatty Acid Binding Protein H-FABP Test Kit Cardiac Marker TRFIA Platform Heart Type Fatty Acid Binding Protein H-FABP Test Kit Cardiac Marker TRFIA Platform Heart Type Fatty Acid Binding Protein H-FABP Test Kit Cardiac Marker

Large Image :  TRFIA Platform Heart Type Fatty Acid Binding Protein H-FABP Test Kit Cardiac Marker

Product Details:
Place of Origin: China
Brand Name: Lumigenex
Certification: ISO13485, cFDA, CE
Model Number: T2007-020, T2007-050
Payment & Shipping Terms:
Minimum Order Quantity: 1250 tests
Price: USD 2.0/ Test
Packaging Details: 20 tests/box, 50 tests/box
Delivery Time: 2-10 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100,000 tests/day

TRFIA Platform Heart Type Fatty Acid Binding Protein H-FABP Test Kit Cardiac Marker

Description
Product Name: Heart-type Fatty Acid Binding Protein (H-FABP) Test Kit (TRFIA) Funtion: Cardiac Marker
Technology: Time Resolved Fluorescence Immunochromatographic Assay (TRFIA) Usage: Vitro Diagnostic Reagent
Format: Strip, Cassette Specimen: Whole Blood, Plasma, Serum
Storing Temperature: 2℃-8℃ Shelf Life: 18 Months
Reading Time: 15 Min. Compatible Equipment: Lumigenex TRFIA Analyzer LTRIC-600, LTRIC-1000
Highlight:

TRFIA H-FABP Test Kit

,

Vitro Diagnostic Reagent H-FABP Test Kit

,

H-FABP Test Kit CFDA Approved

Patented TRFIA Platform Heart Type Fatty Acid Binding Protein H-FABP Test Kit Cardiac Marker

High sensitivity cFDA approved Heart-type Fatty Acid Binding Protein (H-FABP) Test Kit (TRFIA) (TRFIA)


Intended Use

Heart-type Fatty Acid Binding Protein (H-FABP) Test Kit (TRFIA) is suitable for quantitative determination of H-FABP in human whole blood/serum/plasma in vitro diagnosis.

The cardiac fatty acid binding protein can be used as an early marker of AMI, as well as an ideal diagnostic marker for recurrence of myocardial infarction.

Nowadays, the cardiac fatty acid binding protein is mainly applied in the following aspects: early diagnosis AMI evaluation of myocardial infarction area, evaluation of early myocardial microinjury/ myocardial ischemia-reperfusion/ the prognosis of heart failure, etc.

Based on the time-resolved fluorescence technique, the H-FABP content in human whole blood/serum/plasma was determined by double antibody sandwich immunochromatography.





Principle


Cardiac fatty acid binding protein detection kit is a time-resolved fluorescence immunochromatographic technique for quantitative determination of H-FABP in blood samples. The sample was added to the test card. The sample H-FABP coupled with the fluorescent microspheres on the marker pad to form a complex against human H-FABP monoclonal antibody. The detection band containing another specific antibody H-FABP nitric acid fiber membrane was detected by capillary action chromatography and captured to form a double antibody sandwich complex. As a result, the more H-FABP in the sample, the more complex accumulation on the detection band. The excess unreacted fluorescent microspheres continued to be chromatographic to the control line. After the reagent strip is excited, the fluorescence intensity on the detection line reflects the content of the captured H-FABP in the sample. The concentration of H-FABP in the sample was quantitatively reflected by the LTRIC-300/ LTRIC-600/LTRIC-1000 of time-resolved fluorescence immunoassay.



TRFIA Platform Heart Type Fatty Acid Binding Protein H-FABP Test Kit Cardiac Marker 0TRFIA Platform Heart Type Fatty Acid Binding Protein H-FABP Test Kit Cardiac Marker 1
Specification

Product Name
Heart-type Fatty Acid Binding Protein (H-FABP) Test Kit (TRFIA)
Method
Time-Resolved Fluorescence Immunochromatographic Assay (TRFIA)
Certificates
ISO13495, CE
Usage
Vitro Diagnostic Reagent
Function
Cardiac Marker
Specimen
Whole Blood/ Serum/ Plasma
Test Kit Components
20 / 50 Test cards
20 / 50 Sample buffer
1 IC card
1 Instruction manual
Storage & Shelf Life
4℃-30℃, 18 months
Compatible Equipment
Lumigenex Time-resolved Fluorescence Immunoanalyzer LTRIC-600, LTRIC-1000
Test Procedure

TRFIA Platform Heart Type Fatty Acid Binding Protein H-FABP Test Kit Cardiac Marker 2
Performance

Accuracy
Deviation from the quality control target value should be within ±15%.
Minimum detection limit
no higher than 0.1ug/mL.
Linearity
(0.2-50) ug/mL, the kit correlation coefficient R≥0.99
Repeatability
Coefficient of variation (CV) ≤15%.
Inter-batch difference
Inter-batch variation coefficient (CV) ≤15%.



Recommended Products


TRFIA Platform Heart Type Fatty Acid Binding Protein H-FABP Test Kit Cardiac Marker 3


Time-Resolved Fluorescence Immunoassay Analyzer

Product model LTRIC-600, LTRIC-1000

Test Menu
Cardiovascular Disease: cTnI, CK-MB, Myo, cTnI/CK-MB/MYO, H-FABP, cTnI/H-FABP, NT-proBNP, D-Dimer
Inflammation: PCT, CRP, SAA, CRP/SAA
Renal Injury: NGAL, ACR
Others: PGI/PGII, β-HCG, Influenza A+B

Highlights
* Nano-Enhanced TRIFA
* Rapid and accurate quantitative POCT Platform
* Repeatability: CV<10%
* Stability: σ ≤ 10% * Accuracy: Δn ≤ 10% * Linearity: r ≥ 0.99

Detection Projects
Test Strips and Cassettes (with links)

Diabetes

HbA1C, Glucose,  Ketone Body

Hyperlipidemia

Lipid Panel

Anemia

Hemoglobin

Cardiac

CK-MB, cTnI, Myo, NT-proBNP, D-Dimer, H-FABP, sST2, Homocysteine,

cTnI/H-FABP, cTnI/CK-MB/Myo

Inflammation

CRP,  PCT,  SAA,  CRP/SAA,  PCT/IL-6

Hormone

5(OH)D3, β-HCG, AMH

Gastric Function

PGI/PGII

Liver Injury

Aspartate Transaminase, Alanine Aminotransferase

Renal Injury

mALB, Creatinine, NGAL, ACR(TRFIA), ACR(Colloidal Gold)

Gout

Uric Acid

Others

Influenza A+B Combo, Influenza A+B/RSV Combo

Monkeypox CG, Monkeypox IgG/IgM, Monkeypox RT-PCR
